Product Overview

Camera

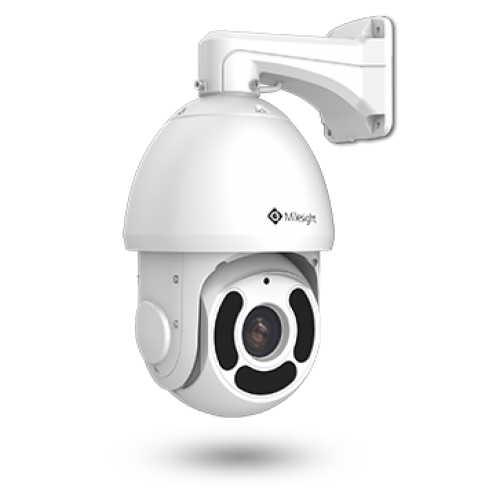

Name : MS-5342-PB 5MP H.265+ PoE Speed Dome Network Camera - 30x Optical Zoom

Image Sensor : 1/2.8" Progressive Scan CMOS

Min. Illumination : Color: 0.005Lux @F1.2. BW : 0Lux with IR on

WDR : 120db Super WDR

Shutter Time : 1/100000s∼1s

Day & Night : ICR Filter Auto Switch

Digital Zoom : 16x

Lens

Focal Length : 4.7~141mm @F1.5~F4.0, 30x Optical Zoom

Zoom Speed : Approx 4s (Optical Wide-Tele)

Field of View : H58°~H3°/D71~°D3°/V44°~V2° (4,7~141mm)

H55°~H3°/D68~°D4°/V42°~V2° (5~117mm)

Minimum Working Distance : 10~1500mm (Wide-Tele)

PTZ

Pan Range : 360°endless

Pan Speed : Pan Manual Speed 0.5°~180°/s, Pan Preset Speed 240°/s

Tilt Range : 0°~90°(Auto Flip)

Tilt Speed : Tilt Manual Speed 0.5°~120°/s, Tilt Preset Speed 200°/s

Proportional Zoom : Support

Preset Quantity : 255

Preset Freezing : Support

Patroll : 8 Patrols, up to 48 presets each patrol

Pattern : 4 pattern

Power Off Memory : Support

PTZ Position Display : ON/OFF

3D Positioning : Support

IR Distance : Up to 200m

IR Angle : Auto/Manual

Video

Max. Image Resolution : 2592x1944

Primary Stream : 30fps@(2592x1944)(optional), 20fps@(2592x1944), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)

Secondary Stream : 30fps@(704x576, 640x480, 640x360, 320x240, 320x192, 320x176)

Tertiary Stream : 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x176)

Video Compression : H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Video Bit Rate: 16Kbps~16Mbps (CBR/VBR adjustable)

Image Settings : Brightness/Contrast/Saturation/Sharpness

Network

Ethernet : 1*RJ45 10M/100M Ethernet Port

Network Storage : NAS(Support NFS, SMB/CIFS)

Protocols : TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTPPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, SIP, IPv6, PPPoE, VLAN,802.1x, QoS, IGMP, ICMP, SSL

System

Alarm I/O : 2/2

RS485 : Support

Storage : Support microSD/SDHC/SDXC Card Local Storage, up to 128G

Advanced Function : Auto Tracking, Motion Detection, Privacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Anti-Fog, White Balance, EIS, IP Address Filtering

SIP/VoIP Support : Yes, Voice&Video-over-IP

Event Trigger : Motion Detection, Network Disconnection, Audio Alarm, etc.

Event Action : FTP Upload/SMTP Upload/SD Card Record/External Output/SIP Phone/White LED/PTZ Motion

Video Analysis (optional) : Region Entrance, Region Exiting, Advance Mode Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed

System Compatibility : ONVIF Profile S & G

General

Working Temperature : -40℃~60℃

Working Humidity : 0∼90%(Non-condensing)

Power Supply : PoE (802.3at)(optional) / AC 24V/3A±10% /

Power Consumption : 13.5W MAX / 25.5W MAX (with IR on) for PB-Series

16.5W MAX / 35.5W MAX 9with IR on) for B-Series

Weather Proof : Up to IP66 rating for weather-resistant performance

Dimensions : Φ205mmx308mm

Weight : 4kg
