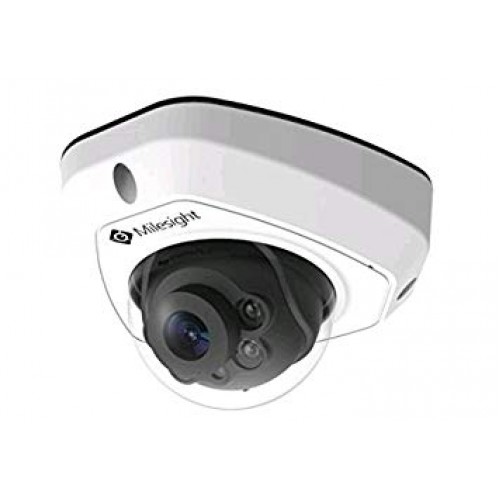

Name	4MP H.265 Vandal-proof Mini Dome Network Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR	Super WDR
Focal Length	3.6mm/2.8mm/6mm@F1.6
Mount	M12
Field of View	H85.2°(3.6mm)
Shutter Time	1/100000s-1/5s
IR Distance	20m

Max. Image Resolution	2592×1520
Frame Rate	20fps(2592×1520), 30fps(2304×1296), 30fps(1920×1080), 30fps(1280×960), 30fps(1280×720), 30fps(704×576)
Video Compression	H.265(HEVC)/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps (CBR/VBR adjustable)
Image Settings	Saturation/Brightness/Contrast/Sharpness
Web Access	Support IE/Firefox/Chrome/Safari Browser

Audio Stream	Built-in Microphone
Audio Compression	G.711/AAC

Communication	1*RJ45 10M/100M Ethernet Port
Network Storage	NAS(Support NFS, SMB/CIFS)
Network Protocols	TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, SIP, SNMP, IPv6, PPPoE, VLAN

Storage	Support Micro SD/SDHC/SDXC Local Storage, up to 128G
Advanced Function	Motion Detection, Privacy Masking, Backlight Compensation, HLC, 3D-DNR, ROI
SIP/VoIP Support	Yes, Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, etc.
Event Action	FTP Upload/SMTP Upload/SD Card Record/SIP Phone
System Compatibility	ONVIF Profile S

Working Temperature	-30℃~60℃
Working Humidity	0~90%(Non-condensing)
Power Supply	PoE
Power Consumption	2.5W MAX, 5.5W MAX (With IR on)
Housing	Vandal-proof IK09-rated metal housing
Weather Proof	Up to IP67 rating for weather-resistant performance
Dimensions	110.8mm×118.5mm×65mm
Weight	500g
Warranty	2 year
