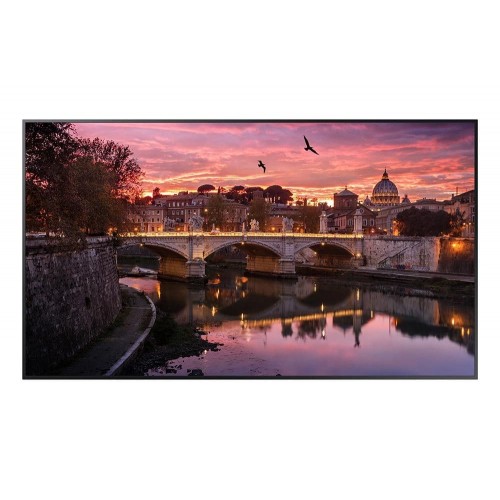

Display any content in ultra-high definition with incredibly rich color on slim, efficient signage.
- Engage customers with lifelike images through ultra high-definition resolution
- Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
- Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades

Specification
Panel
Diagonal Size : 49
Type : Edge LED BLU
Resolution : 3840*2160 (4K UHD)
Pixel Pitch(mm) : 0.093 x 0.279
Active Display Area(mm) : 1073.78(H) x 604.00(V)
Brightness(Typ.) : 350 nit
Contrast Ratio : 4000:1
Viewing Angle(H/V) : 178/178
Response Time(G-to-G) : 8ms(Typ.)
Display Colors : 16.7M(True Display) 1.07B(Ditherd 10bit)
Color Gamut : 92% (DCI-P3, CIE 1976)
Operation Hour: 16/7
Haze : 2%

Display

Dynamic C/R : MEGA
H-Scanning Frequency : 30 ~ 81kHZ
V-Scanning Frequency : 48 ~ 75HZ
Maximum Pixel Frequency : 594MHz

Sound
Speaker Type : Built in Speaker(10W + 10W)

Connectivity
Input
RGB : DVI-D
Video : HDMI 2.0 (2)
HDCP : HDCP 2.2
Audio : Stereo Mini Jack, DVI/HDMI/Audio(Common)
USB : USB 2.0 x 2

Output
Audio : Stereo Mini Jack

External Control : RS232C(in/out) thru stereo jack, RJ45
External Sensor : IR

Power

Type : Internal
Power Supply : AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h] : 138
Typical[W/h] : 103
Rating[W/h] : 125
BTU(Max) : 470.05.00
Sleep mode : 00.05

Mechanical Specification
Dimension (mm)
Set : 1099.2 x 631.5 x 46.3
Package : 1247 x 772 x 152
Weight (kg)
Set : 13.05
Package: 18
Stand Type : Foot Stand (Optional)
Bezel Width (mm) : 9.2mm(U/L/R), 11.2mm(B)
