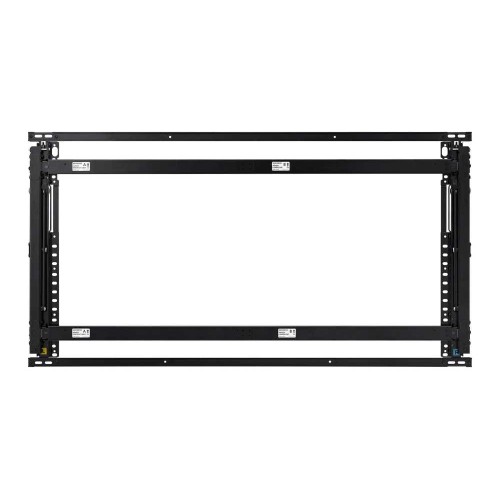

Samsung Video Wall Bracket 55 Inch - WMN-55VD
A slim, easily configurable wall mount for video wall display.

Features
A Specially-Designed Mount Offers Dimensional Consistency for Easy Installation
If there is any discrepancy between the dimensions of a video wall and wall mount, system integrators (SIs) have the painstaking and time-wasting task of measuring the wall mount and calculating the gap to properly size prior to video wall installation. This situation is often experienced with conventional video wall mounting systems, which have not been appropriately sized. For improved setup time and hassle-free installation, Samsung’s new 46-inch (WMN-46VD) and 55-inch (WMN-55VD) wall mounts are specially designed for use with Samsung’s SMART Signage UD/UE Series video walls. As the mounts are sized specifically to the video walls, users only need to install the user-friendly mount first and then fit the video wall into the wall mount. In this way, Samsung’s special wall mount delivers both design and installation simplicity to your business out-of-the-box.


Specification
VESA compatibility: 600x400, 400x600, 400x400
SBB/PIM compatibility : Supported
Touch Overlay compatibility : Not Supported

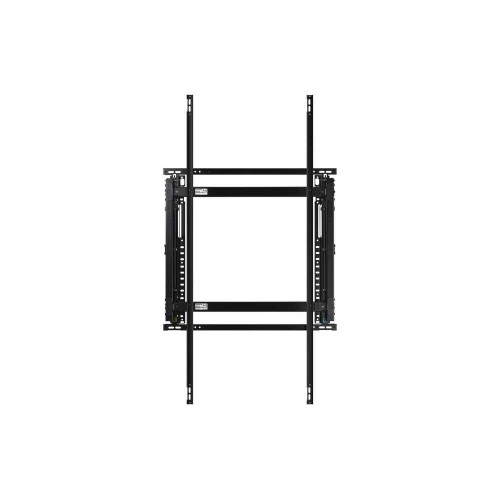

Installation orientation : Landscape and Portrait
Dimension (required footprint in space and floor) (W*H*D, mm): 1213.0 x 539.8mm (Landscape), 684.0 x 539.8mm (Portrait)
Weight (kg) : 11.3 kg
Minimum wall thickness (mm) : 39.9mm
Max load (kg): 29.0 kg
Recommended Usage : Standalone
Maintainability: Push-Pull type
Tilt/Swivel: N/A
